Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

उत्पाद विवरण:
उत्पत्ति के प्लेस:	झूझोउ, चीन
ब्रांड नाम:	Sanxin
मॉडल संख्या:	एसएक्स1269
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा:	2
प्रसव के समय:	5-25 दिन
भुगतान शर्तें:	वेस्टर्न यूनियन, टी/टी, एल/सी

अब से संपर्क करें

विस्तार जानकारी
उत्पाद विवरण

विस्तार जानकारी
कार्बाइड प्रसंस्करण:	उच्च स्थायित्व	सामग्री:	टंगस्टन कार्बाइड
उच्च कठोरता:	एचआरए92	रासायनिक प्रतिरोध:	अधिकांश अम्ल और क्षार के प्रति प्रतिरोधी
जीवनकाल:	लंबा	आनमनी सार्मथ्य:	1,500 एमपीए
सतह:	पॉलिश	अनुप्रयोग:	काटने के उपकरण, पहनने के हिस्से, खनन उपकरण, ड्रिल बिट्स, आदि।
लचीलापन:	अच्छी लचीलापन और मशीनीकरण	विशेषता:	बढ़ी हुई स्थायित्व
सेवा:	एक कदम अनुकूलित सेवा
प्रमुखता देना:	HRA92 Hardness Non-magnetic Carbide Rotating Cylinder , 1 , 500 MPa Flexural Strength WC-Ni Series Carbide Cylinder

उत्पाद विवरण

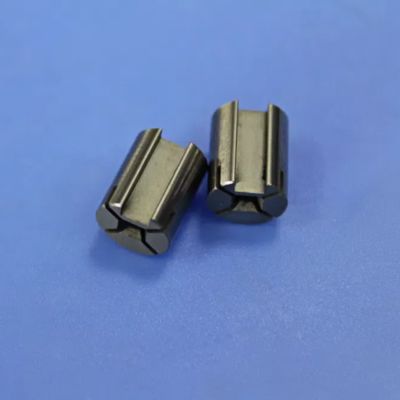

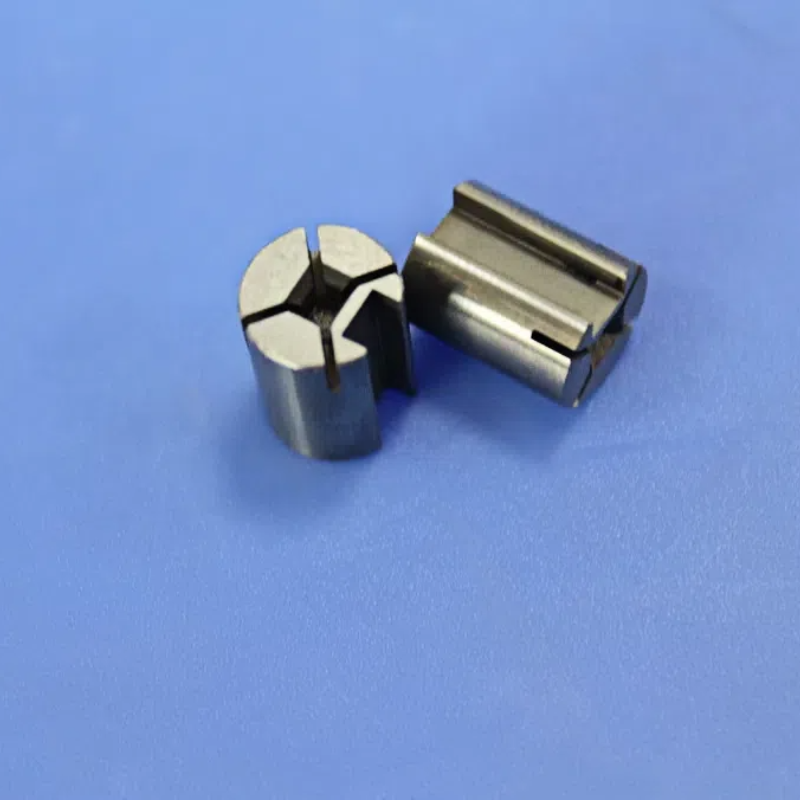

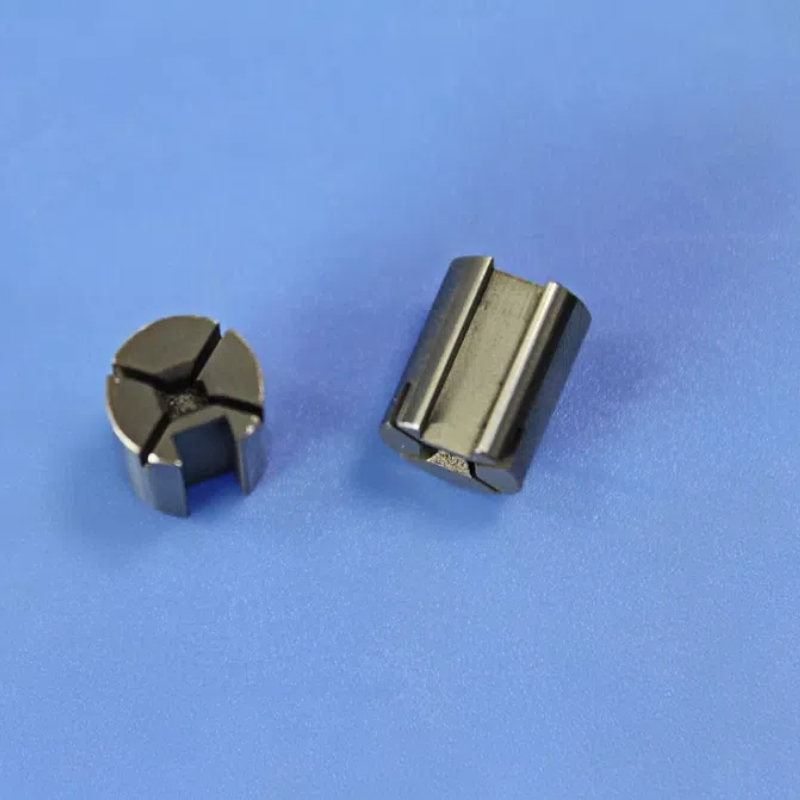

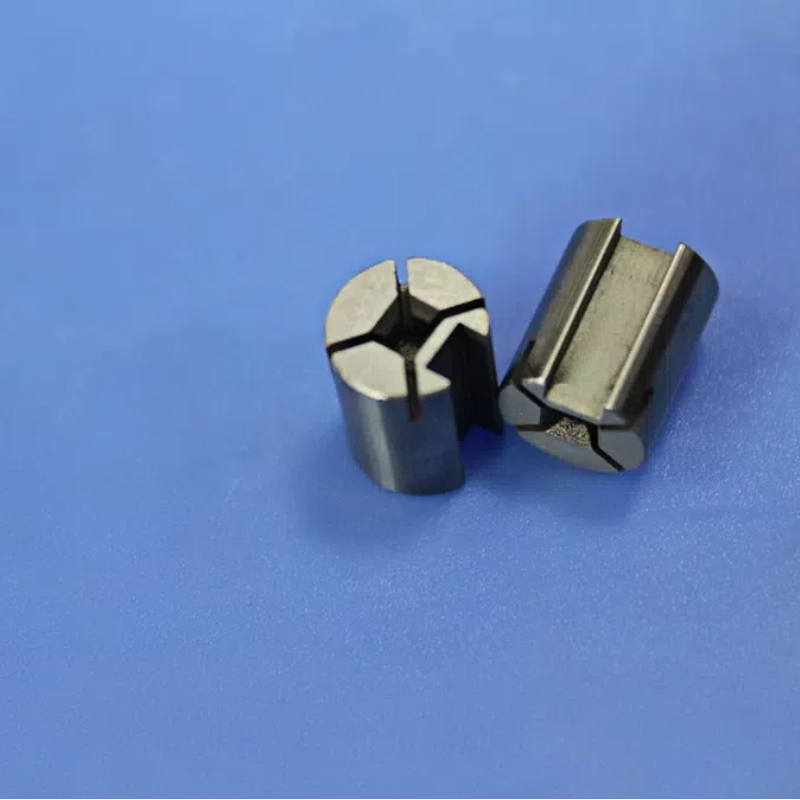

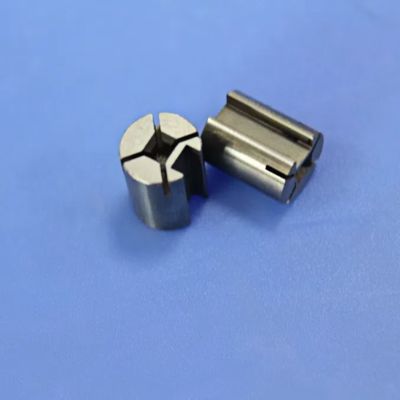

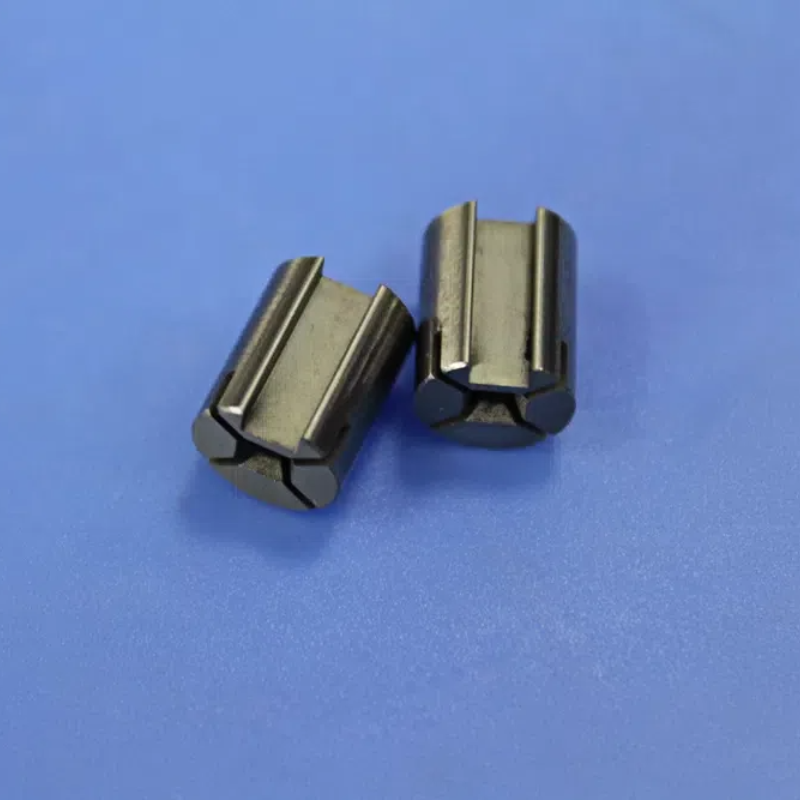

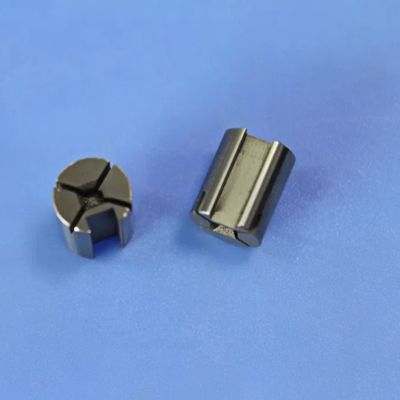

Magnetic Permeability <1.002 WC-Ni Series Non-magnetic Special Research Carbide Rotating Cylinder

The rotating column is precisely manufactured using WC-Ni non-magnetic cemented carbide. By replacing the traditional cobalt element with a nickel-based binder phase, this scientific solution completely eliminates magnetic interference problems found in ordinary cemented carbide. In magnetic field-sensitive environments such as MRI medical equipment, semiconductor manufacturing, and scientific research instruments, it achieves high precision, no magnetic interference, and exceptional stability.

Main Grades of Non-Magnetic Tungsten Carbide

Grade/System	Main Components	Hardness (HRA)	Flexural Strength (MPa)	Characteristics and Applications
M10 Non-Magnetic Tungsten Carbide	WC-Ni System	92.5	3240	General-purpose non-magnetic molds, corrosion-resistant tools
WC-Ni System	WC-0.75Al-14.25Ni	87.4	1670	Non-strongly magnetic at room temperature, relatively high magnetic permeability
WC-Cr₃C₂-Ni System	WC-Cr₃C₂-Ni	-	-	Commonly used in industry, with 1-3% Cr₃C₂ addition
WC-Cr₃C₂-Mo-Ni System	WC-Cr₃C₂-Mo-Ni	-	-	Adds Mo to improve magnetic properties
MAST-N20	WC-Ni (Japan)	91.0	3300	Highly corrosion-resistant, suitable for nozzles, seals, and molding dies

Grade Selection Tips: The above grades primarily achieve non-magnetic properties by using nickel (Ni) as a binder phase. Different grades have different composition and performance emphases. When selecting, please consider your specific magnetic permeability requirements, hardness, strength, and corrosion resistance.

Core Technologies

Non-magnetic Material Design: A nickel-based binder phase ensures non-magnetic properties from the source. Strict composition control prevents the introduction of magnetic impurities.
Precision Manufacturing and Processing: Specialized grinding technology tailored to non-magnetic materials ensures dimensional accuracy (±0.002mm) and dynamic balance grade (G1.0).
Strict Quality Inspection: 100% magnetic permeability testing ensures every product meets non-magnetic standards. Industrial CT non-destructive testing guarantees internal quality.

Typical Application Scenarios

Medical imaging equipment: Rotating components in MRI scanners prevent interference with magnetic resonance imaging.
Semiconductor manufacturing: High-precision equipment such as wafer transfer robots and photolithography machines prevent magnetic field effects on microelectronic components.
Scientific research equipment: Electron microscopes and high-energy physics experimental equipment ensure measurement accuracy.
Aerospace: Satellite attitude control components and aviation instruments meet non-magnetic environment requirements.
