उत्पाद विवरण:
|
|
| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | Sanxin |
| प्रमाणन: | ISO |
| मॉडल संख्या: | एसएक्स1300 |
|
भुगतान & नौवहन नियमों:
|
|
| न्यूनतम आदेश मात्रा: | 2 |
| प्रसव के समय: | 5-30 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी, वेस्टर्न यूनियन |
|
विस्तार जानकारी |
|||
| उच्च कठोरता: | एचआरए92 | श्रेणियाँ: | टंगस्टन कार्बाइड प्रसंस्करण |
|---|---|---|---|
| अनुकूलनविकल्प: | कस्टम आकार, आकार और ग्रेड उपलब्ध हैं | रासायनिक जड़ता: | उच्च |
| लोचदार मापांक: | 530 - 700 जीपीए | सहनशीलता: | ± 0.001 मिमी |
| सेवा: | OEM और ODM | कार्बाइड प्रसंस्करण: | उच्च स्थायित्व |
| सम्पीडक क्षमता: | ≥ 5000 एमपीए | स्थिति: | निर्माता |
उत्पाद विवरण

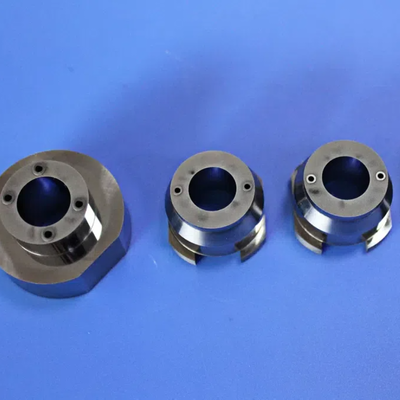

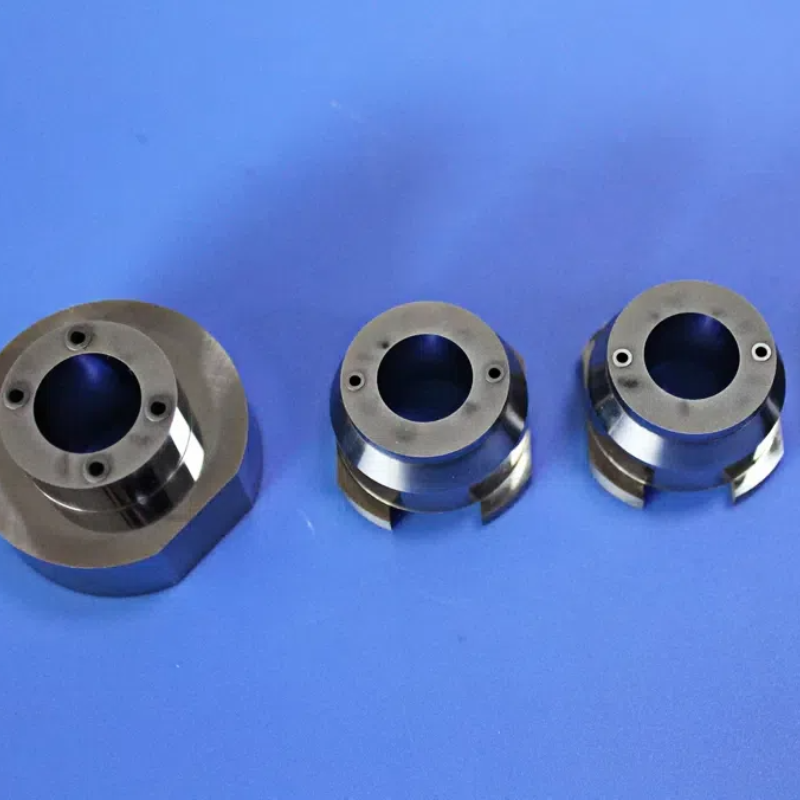

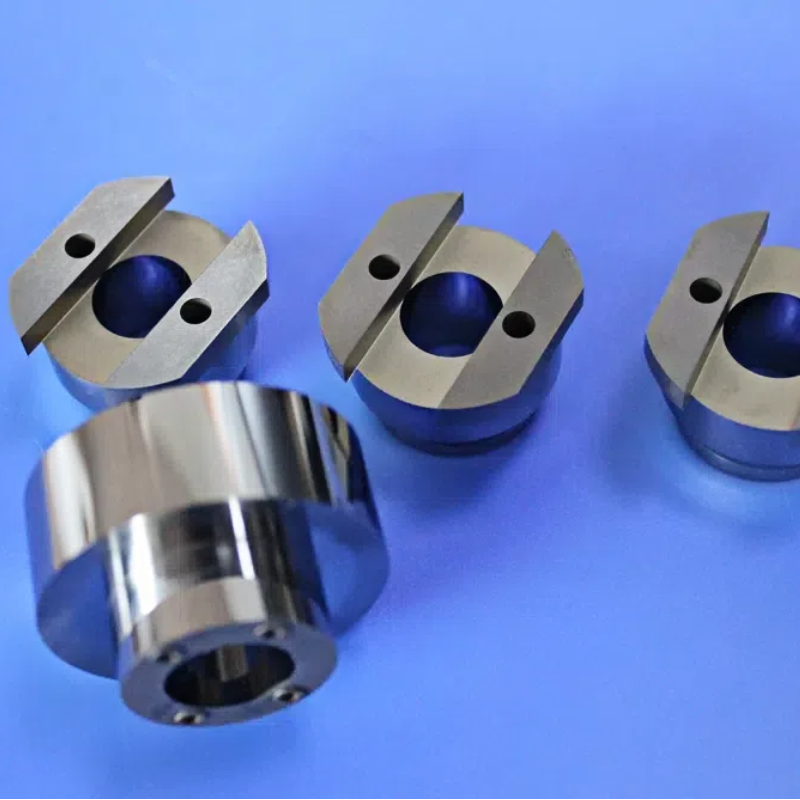

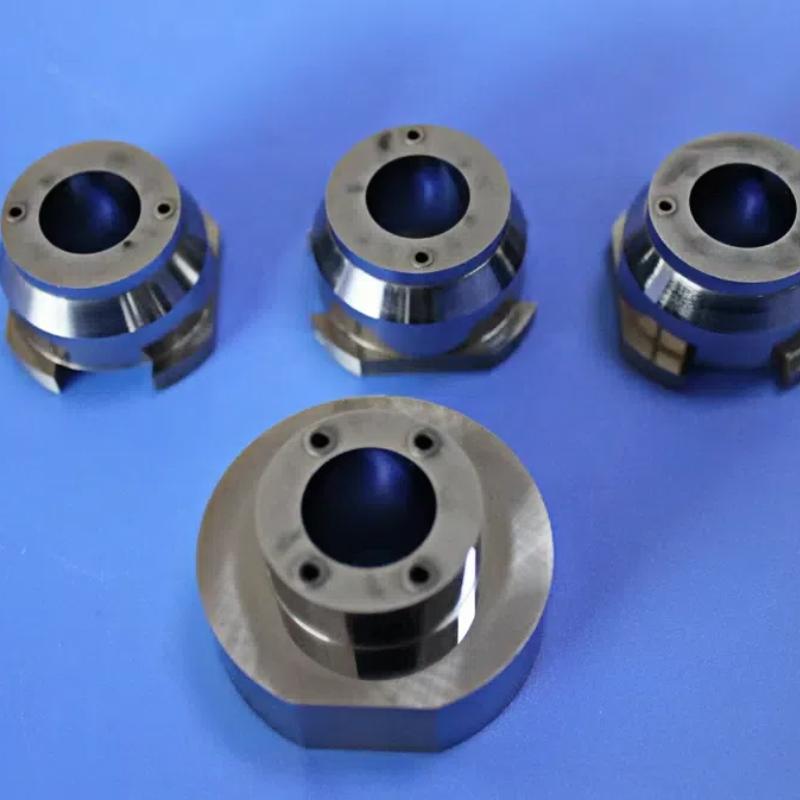

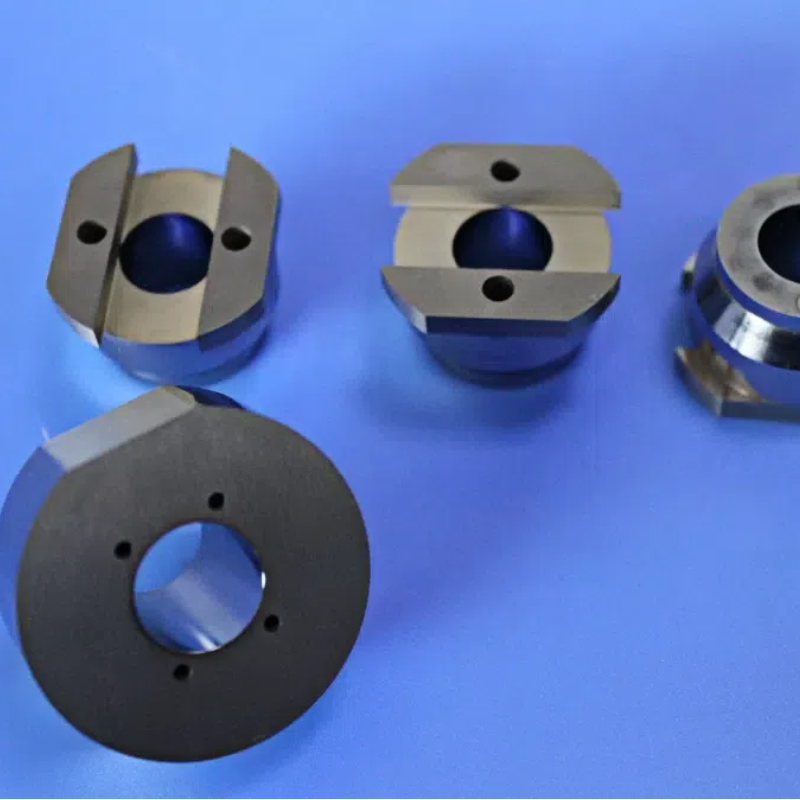

Our Non-Magnetic Tungsten Carbide Precision Hole Bases are engineered to serve as the ideal foundation for demanding applications. Manufactured from specialized WC-Ni (Tungsten Carbide-Nickel) alloy, these precision components deliver the essential combination of absolute magnetic neutrality, exceptional dimensional stability, and superior wear resistance for applications where standard steel or cobalt-bonded carbide cannot be used.
| Property | Typical Value | Benefit |
|---|---|---|
| Hardness | 90 - 92 HRA | Resists wear and deformation over millions of cycles |
| Density | 14.8 - 15.0 g/cm³ | High rigidity, excellent vibration damping |
| Thermal Expansion | 5.5 × 10⁻⁶ /K | Maintains precision across temperature variations |
| Compressive Strength | > 4000 MPa | Withstands high clamping forces without deformation |
Our manufacturing capabilities achieve exceptional accuracy for critical hole features:
| Industry | Application | Why Choose Our Hole Base |
|---|---|---|
| Semiconductor Manufacturing | Wafer stage mounting, mask aligner bases, metrology equipment fixtures | Zero magnetic interference with electron beams, wear-free precision over millions of cycles |
| Medical Imaging (MRI) | RF coil mounts, patient positioning system bases | Absolute non-magnetic property ensures image fidelity and patient safety |
| Aerospace & Defense | Guidance system component mounts, inertial navigation bases | Non-magnetic signature, exceptional stability under vibration and temperature variation |
| Precision Metrology | CMM fixture bases, laser interferometer mounts | Thermal stability maintains calibration accuracy |
| Scientific Research | Electron microscope stages, particle detector mounts | No magnetic field distortion, ultra-high vacuum compatible |
| Automated Assembly | Precision fixture bases, robotic end-effector mounts | Long-term accuracy without wear-induced drift |
