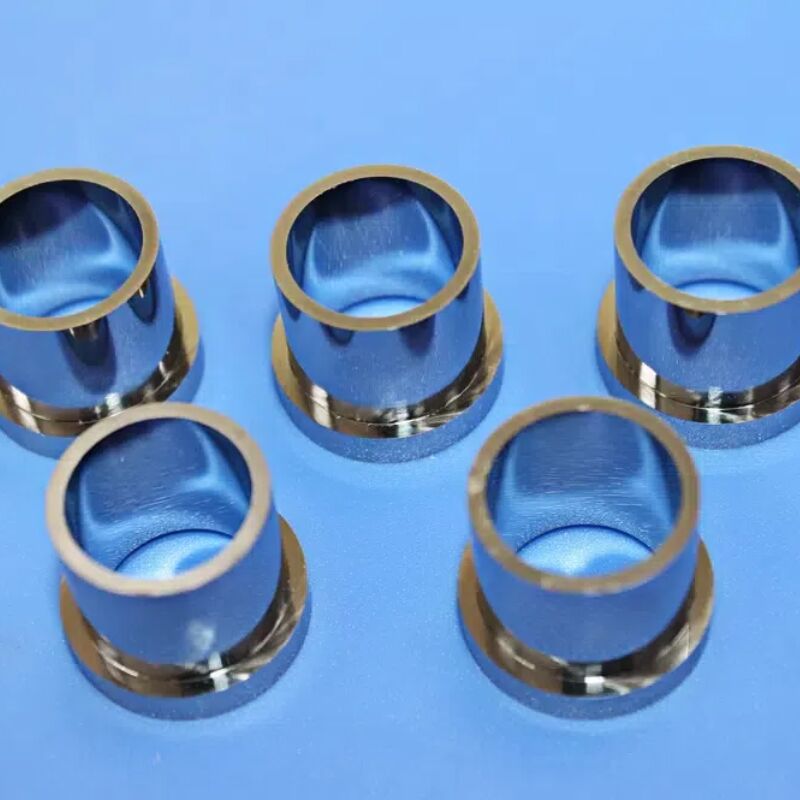

Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

Non-Magnetic Tungsten Carbide Sleeve with High Wear Resistance and Precision Ground WC-Ni Alloy Ring for Sensitive Applications

उत्पाद विवरण:
उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	Sanxin
मॉडल संख्या:	एसएक्स1287
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा:	2
प्रसव के समय:	5-25 दिन
भुगतान शर्तें:	टी/टी

अब से संपर्क करें

विस्तार जानकारी
उत्पाद विवरण

विस्तार जानकारी
मशीनिंग:	टंगस्टन कार्बाइड प्रसंस्करण	ओम सेवा:	स्वीकार्य
रासायनिक निष्क्रियता:	उच्च	शमन तापमान:	1400 - 1600°से
प्रोडक्ट का नाम:	टंगस्टन कार्बाइड आस्तीन	फ़ायदा:	उच्च पहनने का प्रतिरोध
उद्योग:	तेल और गैस उद्योग	कार्य तापमान:	-200 ° C ~ +800 ° C
पैकिंग:	मानक निर्यात पैकेज	आकार सीमा:	अनुकूलन
सेवा:	ओडीएम ओईएम	डिज़ाइन:	तेल खांचे के साथ
परिचालन तापमान:	800°C तक	प्रतिरोध पहन:	उत्कृष्ट
प्रमुखता देना:	Non-Magnetic Tungsten Carbide Sleeve , High Wear Resistance WC-Ni Alloy Ring , Precision Ground Precision Bushing

उत्पाद विवरण

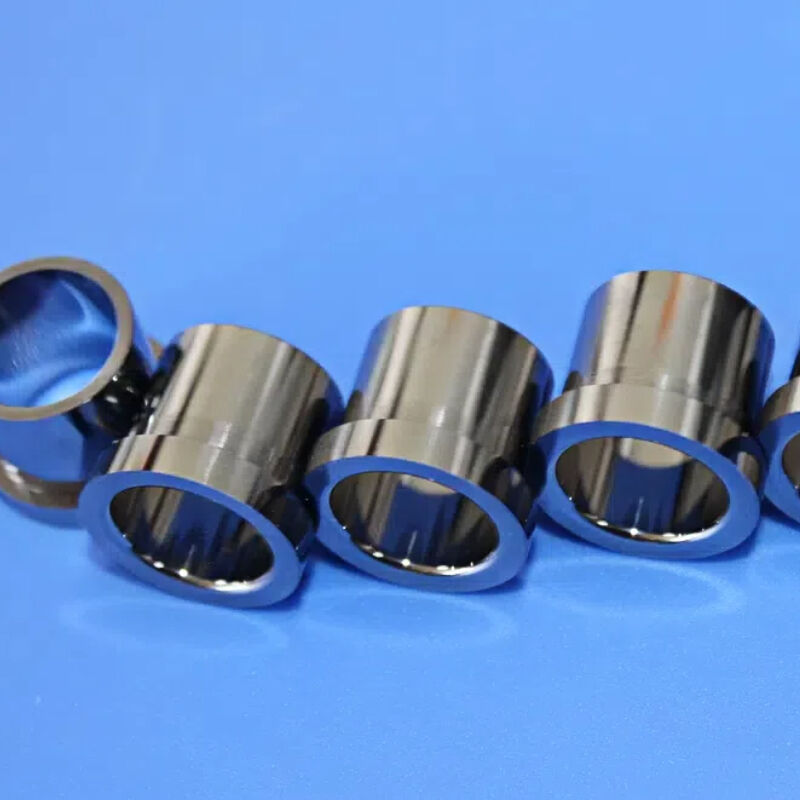

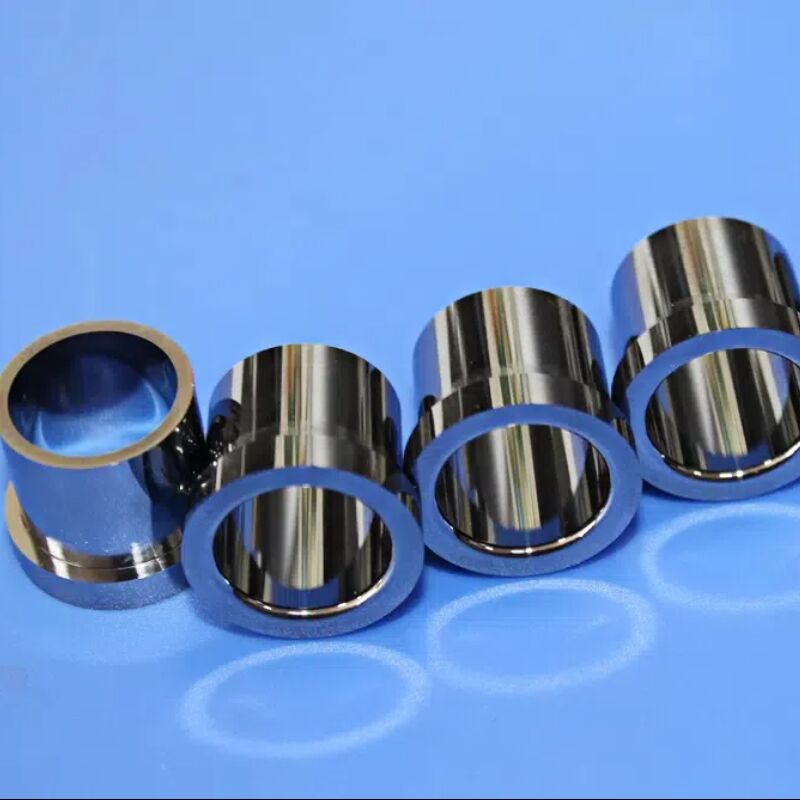

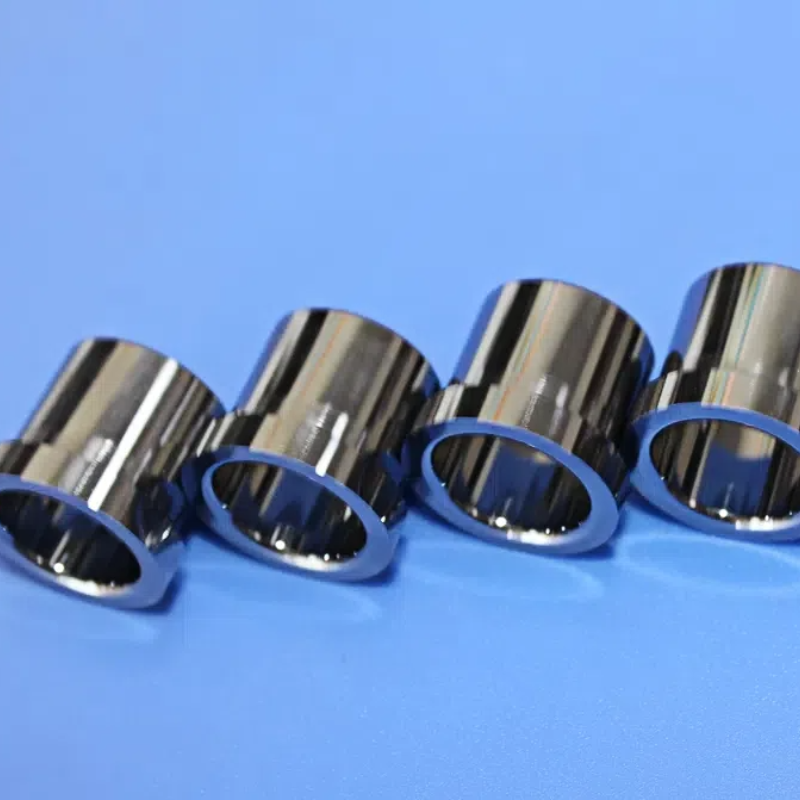

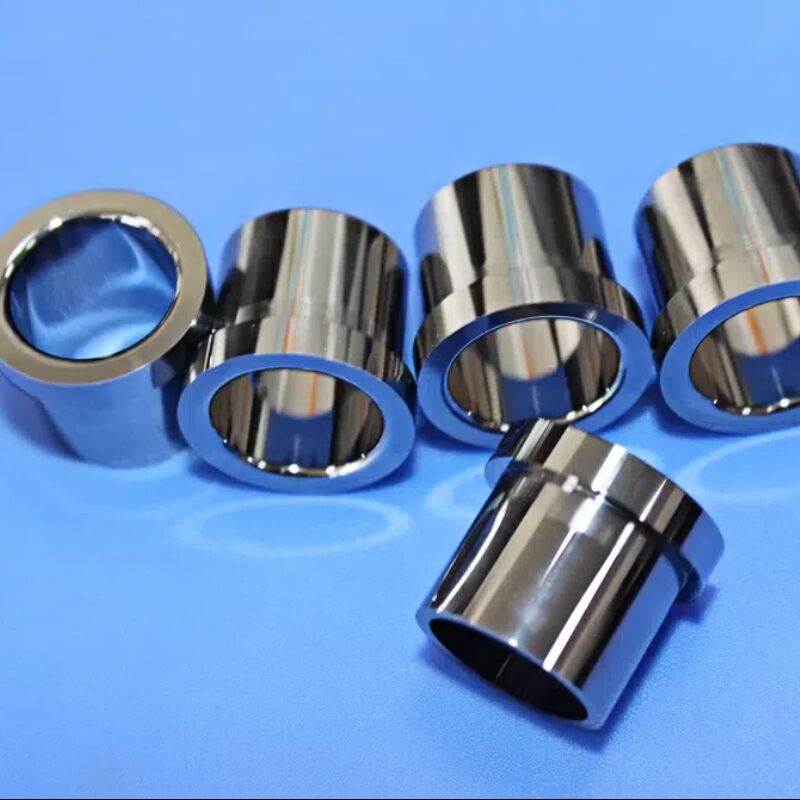

Non-Magnetic Tungsten Carbide Outer Diameter Sleeve

WC-Ni Alloy Precision Ring For Magnetic-Sensitive Applications

Zero Magnetic Signature. Maximum Performance. In applications where even the slightest magnetic interference is unacceptable, our Non-Magnetic Tungsten Carbide Outer Diameter (O.D.) Sleeve sets the new standard. Engineered from specialized Tungsten Carbide-Nickel (WC-Ni) alloy, this precision component delivers the legendary hardness and wear resistance of carbide with a guaranteed non-magnetic property, making it the indispensable choice for MRI systems, semiconductor fabrication equipment, high-end scientific instrumentation, and aerospace guidance systems.

Key Material Advantages

Guaranteed Non-Magnetic: Magnetic permeability (µ) consistently measures < 1.002, ensuring zero impact on sensitive magnetic fields.
Exceptional Hardness & Wear Resistance: With a hardness of 90-92 HRA, it offers dramatically longer service life compared to tool steel or stainless steel, reducing downtime and maintenance costs.
Outstanding Dimensional Stability: Low coefficient of thermal expansion and high rigidity ensure precise tolerances are maintained under varying operational temperatures and loads.
Superior Corrosion Resistance: Excellent resistance to many chemicals, coolants, and cleaning agents, suitable for demanding industrial and cleanroom environments.

Typical Specifications & Machining Capabilities

Our sleeves are manufactured to meet the most stringent requirements. Standard and custom geometries are available.

Parameter	Standard Capability	High-Precision Option
Outer Diameter (O.D.) Range	Ø3mm to Ø150mm	Custom sizes available
O.D. Tolerance	±0.005 mm (g6, h6 standard)	± 0.001 mm (h4, h5)
Inner Diameter (I.D.)	Through-hole or specific bore as per drawing	Matched to your shaft specification
Concentricity (O.D. to I.D.)	≤ 0.008 mm	≤ 0.003 mm
Surface Finish (O.D.)	Ra 0.4 µm (ground)	Ra 0.1 µm or better (lapped/polished)
Length / Height	Custom, according to application

Common Configurations

Simple Sleeve/Bushing: A straight ring for spacing, wear protection, or as a non-magnetic liner.
Flanged Sleeve: Integrates a mounting flange for easy axial location and secure fastening.
Stepped Sleeve: Features multiple outer diameters for complex assembly interfaces.
Custom Geometries: Including grooves, threads, or unique profiles machined to your exact blueprint.

Our Commitment

Custom Engineering Support: Our team works with you to optimize the design for manufacturability and performance.
Consistent Global Supply: Reliable logistics and export documentation for seamless integration into your international supply chain.
